ARRMA Exploded View EV-ARA102727-B97F30A1

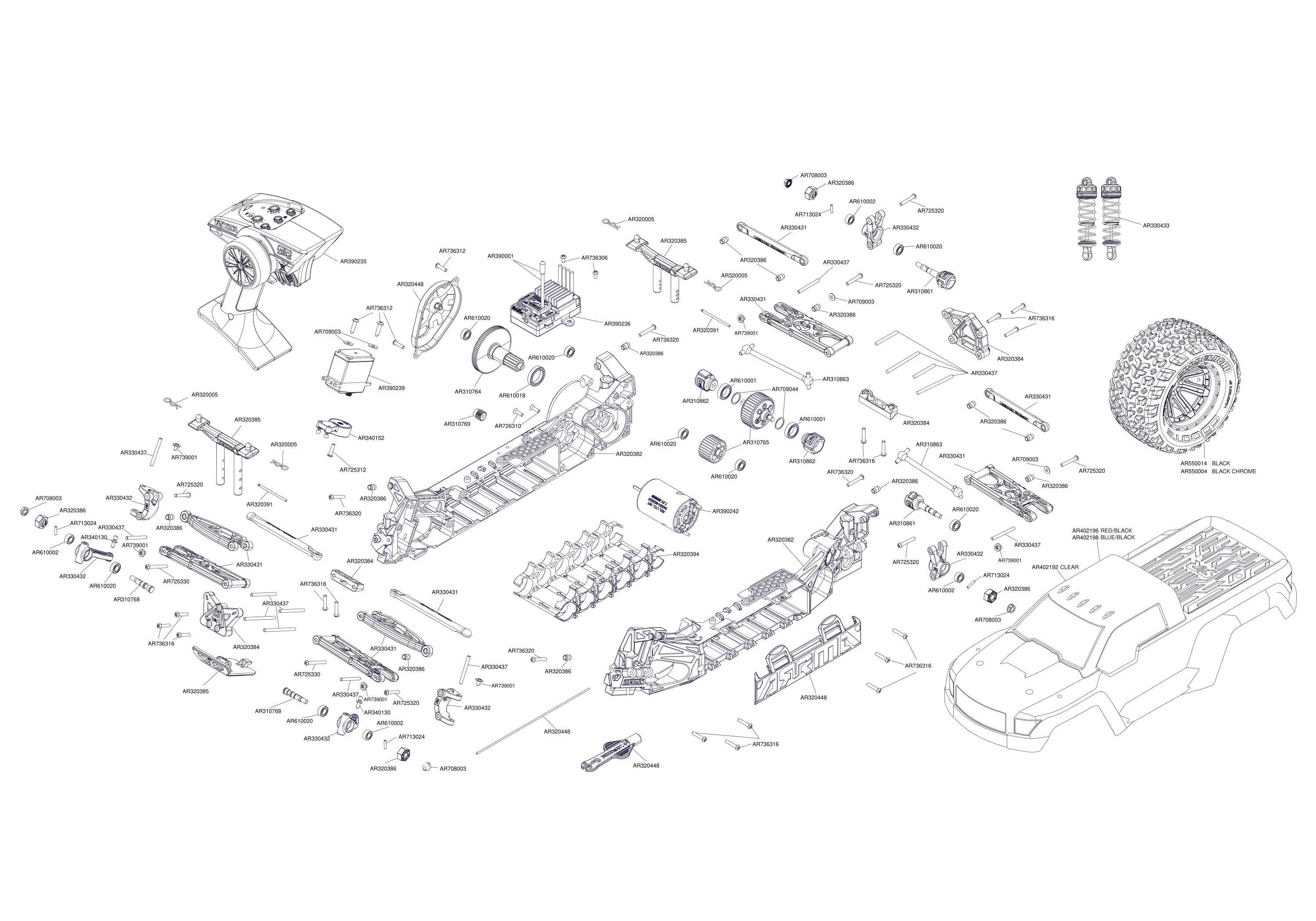

ARA102727 exploded view
View: EV-ARA102727-B97F30A1 | Labels: 137 | Gekoppeld: 136 | Fitment-only: 1
ARAC9750 ARAC8068 ARAC3200 ARAC9844 ARAC8007 ARAC3450 ARAC8958 ARAC9047 ARAC5044 ARAC3478 ARAC3210 ARAC9724 ARAC3000 ARAC9723 ARAC8068 ARAK1010 ARAC5045 ARAC3450 ARAC9352 ARAC9844 ARAC9429 ARAC9047 ARAC9830 ARAC9724 ARAC8068 ARAC3210 ARAC9725 ARAL1010 ARAC3475 ARAC9830 ARAC9793 ARAC9726 ARAC8068 ARAC3210 ARAC9070 ARAC5045 ARAC4019 ARAC3202 ARAM1012 ARAC9829 ARAC9340 ARAC3450 ARAC3162 ARAC9047 ARAC4014 ARAC3202 ARAC3478 ARAC8068 ARAC9070 ARAC7880 ARAC9887 ARA340152 ARAC4060 ARAC3210 ARAC4019 ARAC3450 ARAC5045 ARAC3745 ARAC9047 ARAC9793 ARAC9830 ARAC9725 ARAC4014 ARAC9611 ARAC9838 ARAC9844 ARAC9610 ARAC9726 ARAC3210 ARAC8068 ARAC9844 ARAC8068 ARAC5044 ARAC9750 ARAC8068 ARAC3475 ARAC3210 ARAC8068 ARAC1004 ARAC9726 ARAC8007 ARAC9429 ARAC5045 ARAC8068 ARAC9047 ARAC3326 ARAC3048 ARAC3327 ARAC3745 ARAC5045 ARAC9793 ARAC3200 ARAC5044 ARAC3104 ARAC9793 ARAC9070 ARAC9844 ARAC9047 ARAC3328 ARAC8007 ARAC5044 ARAC9722 ARAC9725 ARAC3210 ARAC8068 ARAC3200 ARAC9047 ARAC3005 ARAC5045 ARAC9750 ARAC9725 ARAC9070 ARAC9047 ARAC9726 ARAC9725 ARAC5045 ARAC8068 ARAC8068 ARAC9722 ARAC9793 ARAC3478 ARAC5045 ARAC9352 ARAC9793 ARAC9844 ARAC5044 ARAC3005 ARAC3048 ARAC3210 ARAC3200 ARAC9352 ARAC8007 ARAC5044 ARAC9725 ARAC9352 ARAC8068 ARAC9750| Label | Part SKU | Naam | Actie |
|---|---|---|---|
| ARAC9750 | ARAC9750 | ARRMA Serrated Flange Wheel Nut 4mm (4) | Bekijk product |
| ARAC8068 | ARAC8068 | ARRMA Composite Pivot Ball and Hex Set | Bekijk product |
| ARAC3200 | ARAC3200 | ARRMA Bearing 5x10x4mm (2) | Bekijk product |
| ARAC9844 | ARAC9844 | ARRMA Button Head Cross Machine Screw 3x20mm (10) | Bekijk product |
| ARAC8007 | ARAC8007 | ARRMA Pin 2x10mm (4) | Bekijk product |
| ARAC3450 | ARAC3450 | ARRMA Body Clip 6mm Black (10) | Bekijk product |
| ARAC8958 | ARAC8958 | ARRMA Assembled Shock (pair) | Bekijk product |
| ARAC9047 | ARAC9047 | ARRMA Suspension Arm Set | Bekijk product |
| ARAC5044 | ARAC5044 | ARRMA Hub & Knuckle Set | Bekijk product |
| ARAC3478 | ARAC3478 | ARRMA Truck Body Mount & Bumper Set | Bekijk product |
| ARAC3210 | ARAC3210 | ARRMA Ball Bearing 6x11x4mm (2) | Bekijk product |
| ARAC9724 | ARAC9724 | ARRMA Button Head Cross Self-Tapping Screw M3x12mm (10) | Bekijk product |
| ARAC3000 | ARAC3000 | ARRMA Antenna Pipe Set 60mm | Bekijk product |
| ARAC9723 | ARAC9723 | ARRMA Button Head Cross Self-Tapping Screw M3x6mm (10) | Bekijk product |
| ARAC8068 | ARAC8068 | ARRMA Composite Pivot Ball and Hex Set | Bekijk product |
| ARAK1010 | ARAK1010 | Bekijk product | |
| ARAC5045 | ARAC5045 | ARRMA Hinge Pin Set | Bekijk product |
| ARAC3450 | ARAC3450 | ARRMA Body Clip 6mm Black (10) | Bekijk product |
| ARAC9352 | ARAC9352 | ARRMA Battery Door Gear Cover Shock Tool: Voltage | Bekijk product |
| ARAC9844 | ARAC9844 | ARRMA Button Head Cross Machine Screw 3x20mm (10) | Bekijk product |
| ARAC9429 | ARAC9429 | Bekijk product | |
| ARAC9047 | ARAC9047 | ARRMA Suspension Arm Set | Bekijk product |
| ARAC9830 | ARAC9830 | ARRMA Washer 3x8x0.5mm (10) | Bekijk product |
| ARAC9724 | ARAC9724 | ARRMA Button Head Cross Self-Tapping Screw M3x12mm (10) | Bekijk product |
| ARAC8068 | ARAC8068 | ARRMA Composite Pivot Ball and Hex Set | Bekijk product |
| ARAC3210 | ARAC3210 | ARRMA Ball Bearing 6x11x4mm (2) | Bekijk product |
| ARAC9725 | ARAC9725 | ARRMA Button Head Cross Self-Tapping Screw M3x16mm (10) | Bekijk product |
| ARAL1010 | ARAL1010 | Bekijk product | |
| ARAC3475 | ARAC3475 | ARRMA Body Post Retaining Pin (2) | Bekijk product |
| ARAC9830 | ARAC9830 | ARRMA Washer 3x8x0.5mm (10) | Bekijk product |
| ARAC9793 | ARAC9793 | ARRMA Button Head Machine Flange Screw M3x5mm (10) | Bekijk product |
| ARAC9726 | ARAC9726 | ARRMA Button Head Cross Self-Tapping Screw M3x20mm (10) | Bekijk product |
| ARAC8068 | ARAC8068 | ARRMA Composite Pivot Ball and Hex Set | Bekijk product |
| ARAC3210 | ARAC3210 | ARRMA Ball Bearing 6x11x4mm (2) | Bekijk product |
| ARAC9070 | ARAC9070 | Bekijk product | |
| ARAC5045 | ARAC5045 | ARRMA Hinge Pin Set | Bekijk product |
| ARAC4019 | ARAC4019 | ARRMA Dog Bone: Voltage (2) | Bekijk product |
| ARAC3202 | ARAC3202 | Bekijk product | |
| ARAM1012 | ARAM1012 | ARRMA ADS-5 SRS Servo | Bekijk product |
| ARAC9829 | ARAC9829 | ARRMA Washer 10x12x0.2mm (4) | Bekijk product |
| ARAC9340 | ARAC9340 | Bekijk product | |
| ARAC3450 | ARAC3450 | ARRMA Body Clip 6mm Black (10) | Bekijk product |
| ARAC3162 | ARAC3162 | Bekijk product | |
| ARAC9047 | ARAC9047 | ARRMA Suspension Arm Set | Bekijk product |
| ARAC4014 | ARAC4014 | ARRMA Diff Outdrive: Voltage (2) | Bekijk product |
| ARAC3202 | ARAC3202 | Bekijk product | |
| ARAC3478 | ARAC3478 | ARRMA Truck Body Mount & Bumper Set | Bekijk product |
| ARAC8068 | ARAC8068 | ARRMA Composite Pivot Ball and Hex Set | Bekijk product |
| ARAC9070 | ARAC9070 | Bekijk product | |
| ARAC7880 | ARAC7880 | ARRMA Pinion Gear 48DP 16T | Bekijk product |
| ARAC9887 | ARAC9887 | ARRMA Flat Head Cross Machine Screw 3x10mm (10) | Bekijk product |
| ARA340152 | ARA340152 | ARRMA Direct Mount Servo Saver 25T Spline | Bekijk product |
| ARAC4060 | ARAC4060 | ARRMA Diff & Idler Gear Set | Bekijk product |
| ARAC3210 | ARAC3210 | ARRMA Ball Bearing 6x11x4mm (2) | Bekijk product |
| ARAC4019 | ARAC4019 | ARRMA Dog Bone: Voltage (2) | Bekijk product |
| ARAC3450 | ARAC3450 | ARRMA Body Clip 6mm Black (10) | Bekijk product |
| ARAC5045 | ARAC5045 | ARRMA Hinge Pin Set | Bekijk product |
| ARAC3745 | ARAC3745 | ARRMA Chassis Set | Bekijk product |
| ARAC9047 | ARAC9047 | ARRMA Suspension Arm Set | Bekijk product |
| ARAC9793 | ARAC9793 | ARRMA Button Head Machine Flange Screw M3x5mm (10) | Bekijk product |
| ARAC9830 | ARAC9830 | ARRMA Washer 3x8x0.5mm (10) | Bekijk product |
| ARAC9725 | ARAC9725 | ARRMA Button Head Cross Self-Tapping Screw M3x16mm (10) | Bekijk product |
| ARAC4014 | ARAC4014 | ARRMA Diff Outdrive: Voltage (2) | Bekijk product |
| ARAC9611 | ARAC9611 | Bekijk product | |
| ARAC9838 | ARAC9838 | ARRMA Button Head Cross Machine Screw 3x12mm (10) | Bekijk product |
| ARAC9844 | ARAC9844 | ARRMA Button Head Cross Machine Screw 3x20mm (10) | Bekijk product |
| ARAC9610 | ARAC9610 | Dit onderdeel staat wel in de ARRMA exploded view, maar is niet als los verkoopbaar product in de ARRMA-catalogus gevonden. | |
| ARAC9726 | ARAC9726 | ARRMA Button Head Cross Self-Tapping Screw M3x20mm (10) | Bekijk product |
| ARAC3210 | ARAC3210 | ARRMA Ball Bearing 6x11x4mm (2) | Bekijk product |
| ARAC8068 | ARAC8068 | ARRMA Composite Pivot Ball and Hex Set | Bekijk product |
| ARAC9844 | ARAC9844 | ARRMA Button Head Cross Machine Screw 3x20mm (10) | Bekijk product |
| ARAC8068 | ARAC8068 | ARRMA Composite Pivot Ball and Hex Set | Bekijk product |
| ARAC5044 | ARAC5044 | ARRMA Hub & Knuckle Set | Bekijk product |
| ARAC9750 | ARAC9750 | ARRMA Serrated Flange Wheel Nut 4mm (4) | Bekijk product |
| ARAC8068 | ARAC8068 | ARRMA Composite Pivot Ball and Hex Set | Bekijk product |
| ARAC3475 | ARAC3475 | ARRMA Body Post Retaining Pin (2) | Bekijk product |
| ARAC3210 | ARAC3210 | ARRMA Ball Bearing 6x11x4mm (2) | Bekijk product |
| ARAC8068 | ARAC8068 | ARRMA Composite Pivot Ball and Hex Set | Bekijk product |
| ARAC1004 | ARAC1004 | ARRMA 540 Brushed Motor 20T Mega SRS | Bekijk product |
| ARAC9726 | ARAC9726 | ARRMA Button Head Cross Self-Tapping Screw M3x20mm (10) | Bekijk product |
| ARAC8007 | ARAC8007 | ARRMA Pin 2x10mm (4) | Bekijk product |
| ARAC9429 | ARAC9429 | Bekijk product | |
| ARAC5045 | ARAC5045 | ARRMA Hinge Pin Set | Bekijk product |
| ARAC8068 | ARAC8068 | ARRMA Composite Pivot Ball and Hex Set | Bekijk product |
| ARAC9047 | ARAC9047 | ARRMA Suspension Arm Set | Bekijk product |
| ARAC3326 | ARAC3326 | ARRMA 1/10 Painted Body with Decals, Red/Black: GRANITE VOLTAGE | Bekijk product |
| ARAC3048 | ARAC3048 | ARRMA Ball 4.3x10.75mm (4) | Bekijk product |
| ARAC3327 | ARAC3327 | ARRMA 1/10 Painted Body with Decals, Blue/Black: GRANITE VOLTAGE | Bekijk product |
| ARAC3745 | ARAC3745 | ARRMA Chassis Set | Bekijk product |
| ARAC5045 | ARAC5045 | ARRMA Hinge Pin Set | Bekijk product |
| ARAC9793 | ARAC9793 | ARRMA Button Head Machine Flange Screw M3x5mm (10) | Bekijk product |
| ARAC3200 | ARAC3200 | ARRMA Bearing 5x10x4mm (2) | Bekijk product |
| ARAC5044 | ARAC5044 | ARRMA Hub & Knuckle Set | Bekijk product |
| ARAC3104 | ARAC3104 | ARRMA Battery Cradle | Bekijk product |
| ARAC9793 | ARAC9793 | ARRMA Button Head Machine Flange Screw M3x5mm (10) | Bekijk product |
| ARAC9070 | ARAC9070 | Bekijk product | |
| ARAC9844 | ARAC9844 | ARRMA Button Head Cross Machine Screw 3x20mm (10) | Bekijk product |
| ARAC9047 | ARAC9047 | ARRMA Suspension Arm Set | Bekijk product |
| ARAC3328 | ARAC3328 | ARRMA 1/10 Bodyshell with Decals, Clear : GRANITE | Bekijk product |
| ARAC8007 | ARAC8007 | ARRMA Pin 2x10mm (4) | Bekijk product |
| ARAC5044 | ARAC5044 | ARRMA Hub & Knuckle Set | Bekijk product |
| ARAC9722 | ARAC9722 | ARRMA Button Head Cross Screw M3x30mm (4) | Bekijk product |
| ARAC9725 | ARAC9725 | ARRMA Button Head Cross Self-Tapping Screw M3x16mm (10) | Bekijk product |
| ARAC3210 | ARAC3210 | ARRMA Ball Bearing 6x11x4mm (2) | Bekijk product |
| ARAC8068 | ARAC8068 | ARRMA Composite Pivot Ball and Hex Set | Bekijk product |
| ARAC3200 | ARAC3200 | ARRMA Bearing 5x10x4mm (2) | Bekijk product |
| ARAC9047 | ARAC9047 | ARRMA Suspension Arm Set | Bekijk product |
| ARAC3005 | ARAC3005 | ARRMA Front Axle (2) | Bekijk product |
| ARAC5045 | ARAC5045 | ARRMA Hinge Pin Set | Bekijk product |
| ARAC9750 | ARAC9750 | ARRMA Serrated Flange Wheel Nut 4mm (4) | Bekijk product |
| ARAC9725 | ARAC9725 | ARRMA Button Head Cross Self-Tapping Screw M3x16mm (10) | Bekijk product |
| ARAC9070 | ARAC9070 | Bekijk product | |
| ARAC9047 | ARAC9047 | ARRMA Suspension Arm Set | Bekijk product |
| ARAC9726 | ARAC9726 | ARRMA Button Head Cross Self-Tapping Screw M3x20mm (10) | Bekijk product |
| ARAC9725 | ARAC9725 | ARRMA Button Head Cross Self-Tapping Screw M3x16mm (10) | Bekijk product |
| ARAC5045 | ARAC5045 | ARRMA Hinge Pin Set | Bekijk product |
| ARAC8068 | ARAC8068 | ARRMA Composite Pivot Ball and Hex Set | Bekijk product |
| ARAC8068 | ARAC8068 | ARRMA Composite Pivot Ball and Hex Set | Bekijk product |
| ARAC9722 | ARAC9722 | ARRMA Button Head Cross Screw M3x30mm (4) | Bekijk product |
| ARAC9793 | ARAC9793 | ARRMA Button Head Machine Flange Screw M3x5mm (10) | Bekijk product |
| ARAC3478 | ARAC3478 | ARRMA Truck Body Mount & Bumper Set | Bekijk product |
| ARAC5045 | ARAC5045 | ARRMA Hinge Pin Set | Bekijk product |
| ARAC9352 | ARAC9352 | ARRMA Battery Door Gear Cover Shock Tool: Voltage | Bekijk product |
| ARAC9793 | ARAC9793 | ARRMA Button Head Machine Flange Screw M3x5mm (10) | Bekijk product |
| ARAC9844 | ARAC9844 | ARRMA Button Head Cross Machine Screw 3x20mm (10) | Bekijk product |
| ARAC5044 | ARAC5044 | ARRMA Hub & Knuckle Set | Bekijk product |
| ARAC3005 | ARAC3005 | ARRMA Front Axle (2) | Bekijk product |
| ARAC3048 | ARAC3048 | ARRMA Ball 4.3x10.75mm (4) | Bekijk product |
| ARAC3210 | ARAC3210 | ARRMA Ball Bearing 6x11x4mm (2) | Bekijk product |
| ARAC3200 | ARAC3200 | ARRMA Bearing 5x10x4mm (2) | Bekijk product |
| ARAC9352 | ARAC9352 | ARRMA Battery Door Gear Cover Shock Tool: Voltage | Bekijk product |
| ARAC8007 | ARAC8007 | ARRMA Pin 2x10mm (4) | Bekijk product |
| ARAC5044 | ARAC5044 | ARRMA Hub & Knuckle Set | Bekijk product |
| ARAC9725 | ARAC9725 | ARRMA Button Head Cross Self-Tapping Screw M3x16mm (10) | Bekijk product |
| ARAC9352 | ARAC9352 | ARRMA Battery Door Gear Cover Shock Tool: Voltage | Bekijk product |
| ARAC8068 | ARAC8068 | ARRMA Composite Pivot Ball and Hex Set | Bekijk product |
| ARAC9750 | ARAC9750 | ARRMA Serrated Flange Wheel Nut 4mm (4) | Bekijk product |
