ARRMA Exploded View EV-ARA2106T1-3A11B945

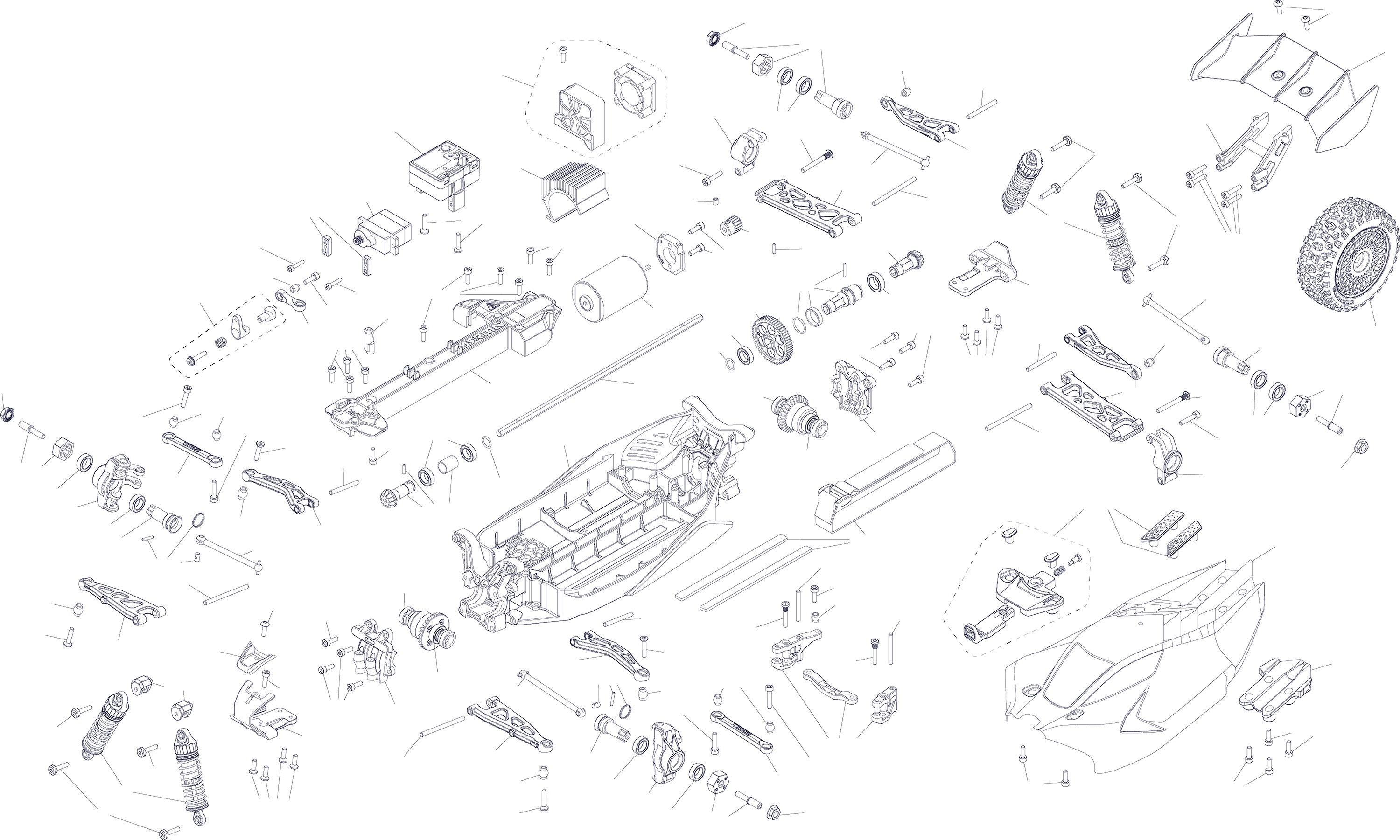

ARA2106T1 exploded view
View: EV-ARA2106T1-3A11B945 | Labels: 147 | Gekoppeld: 147 | Fitment-only: 0
ARA-1254 ARAC9750 ARA311178 ARA480074 ARA330804 ARA-1251 ARA320751 ARA330807 ARA610053 ARA480074 SPMXSE2625RX ARA702013 ARA330808 ARA702019 ARA702011 ARA-1253 ARA311179 ARA330808 SPMSSX110 ARA320750 ARA724304 SPMXSE2625RX ARA-1252 ARA702017 ARA702019 ARA320744 ARA311204 ARA702011 ARA702012 ARA702010 ARA311182 ARA311182 ARA702010 ARA330804 ARA320811 ARA311225 ARA702012 ARA702010 ARA311179 ARA610053 ARA340203 ARA702010 ARA311196 ARA390305 ARA320810 ARA340201 ARA702010 ARA550114 ARA610053 ARA320751 ARA330804 ARA702010 ARA311182 ARA311178 ARA702010 ARA702016 ARA311224 ARA320810 ARAC9750 ARA311178 ARA330808 ARA311177 ARA702013 ARA330803 ARA702011 ARA610053 ARA702011 ARA610053 ARA320749 ARA320750 ARA320809 ARA702011 ARA702010 ARA702017 ARA610052 ARA320751 ARA311178 ARAC9750 ARA330807 ARA340201 ARA311182 ARA610053 ARA320812 ARA330807 ARA311182 ARA330805 ARA610053 ARA330809 ARA412005 ARA320814 ARA311178 ARA412006 ARA311180 ARA412007 ARA311181 ARA320751 ARA320750 ARA311177 ARA702010 ARA330805 ARA330804 ARA-1254 ARA320751 ARA702010 ARA320751 ARA702015 ARA702017 ARA412005 ARA330809 ARA412006 ARA702017 ARA330809 ARA412007 ARA702015 ARA320812 ARA610052 ARA311181 ARA330803 ARA311180 ARA320813 ARA702010 ARA330805 ARA702010 ARA320749 ARA702011 ARA702019 ARA702010 ARA320811 ARA340202 ARA330809 ARA311178 ARA320750 ARA702011 ARA702019 ARA340201 ARA330805 ARA610053 ARA702010 ARA702010 ARA-1252 ARA330807 ARA702016 ARA610053 ARAC9750 ARA702017 ARA702019 ARA311178| Label | Part SKU | Naam | Actie |
|---|---|---|---|
| ARA-1254 | ARA-1254 | ARRMA M2.5x8mm Button Head Screw With M3 Head (10) | Bekijk product |
| ARAC9750 | ARAC9750 | ARRMA Serrated Flange Wheel Nut 4mm (4) | Bekijk product |
| ARA311178 | ARA311178 | ARRMA Wheel Axle and Hub Set | Bekijk product |
| ARA480074 | ARA480074 | ARRMA Rear Wing Set | Bekijk product |
| ARA330804 | ARA330804 | ARRMA Ball 4.8x4.9x2.5mm (10) | Bekijk product |
| ARA-1251 | ARA-1251 | ARRMA Motor Fan & Mount Set: GROM | Bekijk product |
| ARA320751 | ARA320751 | ARRMA Hingepin 2.5x24mm (4) | Bekijk product |
| ARA330807 | ARA330807 | ARRMA Hub Set (F+R) (STD) | Bekijk product |
| ARA610053 | ARA610053 | ARRMA Ball Bearing 7x11x3mm (2RS) (4) | Bekijk product |
| ARA480074 | ARA480074 | ARRMA Rear Wing Set | Bekijk product |
| SPMXSE2625RX | SPMXSE2625RX | Spektrum Accessories 25A SLT 2-in-1 ESC / Receiver Combo: GROM | Bekijk product |
| ARA702013 | ARA702013 | ARRMA Button Head Screw Pin M3x24mm (10) | Bekijk product |
| ARA330808 | ARA330808 | ARRMA Rear Suspension Arm Set A: GROM | Bekijk product |
| ARA702019 | ARA702019 | ARRMA M2.5x12mm 5.5mm Hex Head (10) | Bekijk product |
| ARA702011 | ARA702011 | ARRMA Cap Head Screw M2.5x12mm (10) | Bekijk product |
| ARA-1253 | ARA-1253 | ARRMA Motor Heatsink Type B: GROM | Bekijk product |
| ARA311179 | ARA311179 | ARRMA Dogbone 50mm (2) | Bekijk product |
| ARA330808 | ARA330808 | ARRMA Rear Suspension Arm Set A: GROM | Bekijk product |
| SPMSSX110 | SPMSSX110 | Spektrum Micro Metal Gear Servo | Bekijk product |
| ARA320750 | ARA320750 | ARRMA Hingepin 2.5x37mm (4) | Bekijk product |
| ARA724304 | ARA724304 | ARRMA Set Screw M3x4mm (10) | Bekijk product |
| SPMXSE2625RX | SPMXSE2625RX | Spektrum Accessories 25A SLT 2-in-1 ESC / Receiver Combo: GROM | Bekijk product |
| ARA-1252 | ARA-1252 | ARRMA Shock Set, 58mm Length, 2000cSt Oil (2pcs) | Bekijk product |
| ARA702017 | ARA702017 | ARRMA Flat Head Screw M2.5x12mm (10) | Bekijk product |
| ARA702019 | ARA702019 | ARRMA M2.5x12mm 5.5mm Hex Head (10) | Bekijk product |
| ARA320744 | ARA320744 | ARRMA Motor Mount Set (8) | Bekijk product |
| ARA311204 | ARA311204 | ARRMA Pinion Gear 18T 0.5 MOD CNC 2.3mm Bore | Bekijk product |
| ARA702011 | ARA702011 | ARRMA Cap Head Screw M2.5x12mm (10) | Bekijk product |
| ARA702012 | ARA702012 | ARRMA Cap Head Screw M2x10mm (10) | Bekijk product |
| ARA702010 | ARA702010 | ARRMA Cap Head Screw M2.5x8mm (10) | Bekijk product |
| ARA311182 | ARA311182 | ARRMA Input Gear Set | Bekijk product |
| ARA311182 | ARA311182 | ARRMA Input Gear Set | Bekijk product |
| ARA702010 | ARA702010 | ARRMA Cap Head Screw M2.5x8mm (10) | Bekijk product |
| ARA330804 | ARA330804 | ARRMA Ball 4.8x4.9x2.5mm (10) | Bekijk product |
| ARA320811 | ARA320811 | ARRMA Bumper Set (2) | Bekijk product |
| ARA311225 | ARA311225 | ARRMA Center Driveshaft Coupler | Bekijk product |
| ARA702012 | ARA702012 | ARRMA Cap Head Screw M2x10mm (10) | Bekijk product |
| ARA702010 | ARA702010 | ARRMA Cap Head Screw M2.5x8mm (10) | Bekijk product |
| ARA311179 | ARA311179 | ARRMA Dogbone 50mm (2) | Bekijk product |
| ARA610053 | ARA610053 | ARRMA Ball Bearing 7x11x3mm (2RS) (4) | Bekijk product |
| ARA340203 | ARA340203 | Bekijk product | |
| ARA702010 | ARA702010 | ARRMA Cap Head Screw M2.5x8mm (10) | Bekijk product |
| ARA311196 | ARA311196 | ARRMA Metal Spur Gear 59T | Bekijk product |
| ARA390305 | ARA390305 | ARRMA Mega 380 Brushed Motor | Bekijk product |
| ARA320810 | ARA320810 | ARRMA Composite Top Deck 200mm | Bekijk product |
| ARA340201 | ARA340201 | ARRMA Steering Link Set A: GROM | Bekijk product |
| ARA702010 | ARA702010 | ARRMA Cap Head Screw M2.5x8mm (10) | Bekijk product |
| ARA550114 | ARA550114 | ARRMA dBoots '2-HO' Tire Set Glued (Black) (2 Pairs) | Bekijk product |
| ARA610053 | ARA610053 | ARRMA Ball Bearing 7x11x3mm (2RS) (4) | Bekijk product |
| ARA320751 | ARA320751 | ARRMA Hingepin 2.5x24mm (4) | Bekijk product |
| ARA330804 | ARA330804 | ARRMA Ball 4.8x4.9x2.5mm (10) | Bekijk product |
| ARA702010 | ARA702010 | ARRMA Cap Head Screw M2.5x8mm (10) | Bekijk product |
| ARA311182 | ARA311182 | ARRMA Input Gear Set | Bekijk product |
| ARA311178 | ARA311178 | ARRMA Wheel Axle and Hub Set | Bekijk product |
| ARA702010 | ARA702010 | ARRMA Cap Head Screw M2.5x8mm (10) | Bekijk product |
| ARA702016 | ARA702016 | ARRMA Flat Head Screw M2.5x8mm (10) | Bekijk product |
| ARA311224 | ARA311224 | ARRMA Center Driveshaft 177mm | Bekijk product |
| ARA320810 | ARA320810 | ARRMA Composite Top Deck 200mm | Bekijk product |
| ARAC9750 | ARAC9750 | ARRMA Serrated Flange Wheel Nut 4mm (4) | Bekijk product |
| ARA311178 | ARA311178 | ARRMA Wheel Axle and Hub Set | Bekijk product |
| ARA330808 | ARA330808 | ARRMA Rear Suspension Arm Set A: GROM | Bekijk product |
| ARA311177 | ARA311177 | Bekijk product | |
| ARA702013 | ARA702013 | ARRMA Button Head Screw Pin M3x24mm (10) | Bekijk product |
| ARA330803 | ARA330803 | ARRMA Ball 5.3x5.9x2.5mm (10) | Bekijk product |
| ARA702011 | ARA702011 | ARRMA Cap Head Screw M2.5x12mm (10) | Bekijk product |
| ARA610053 | ARA610053 | ARRMA Ball Bearing 7x11x3mm (2RS) (4) | Bekijk product |
| ARA702011 | ARA702011 | ARRMA Cap Head Screw M2.5x12mm (10) | Bekijk product |
| ARA610053 | ARA610053 | ARRMA Ball Bearing 7x11x3mm (2RS) (4) | Bekijk product |
| ARA320749 | ARA320749 | ARRMA Diff Cover Set (2): GROM | Bekijk product |
| ARA320750 | ARA320750 | ARRMA Hingepin 2.5x37mm (4) | Bekijk product |
| ARA320809 | ARA320809 | ARRMA Composite Chassis 200mm | Bekijk product |
| ARA702011 | ARA702011 | ARRMA Cap Head Screw M2.5x12mm (10) | Bekijk product |
| ARA702010 | ARA702010 | ARRMA Cap Head Screw M2.5x8mm (10) | Bekijk product |
| ARA702017 | ARA702017 | ARRMA Flat Head Screw M2.5x12mm (10) | Bekijk product |
| ARA610052 | ARA610052 | ARRMA Ball Bearing 8x12x3.5mm (2RS) (4) | Bekijk product |
| ARA320751 | ARA320751 | ARRMA Hingepin 2.5x24mm (4) | Bekijk product |
| ARA311178 | ARA311178 | ARRMA Wheel Axle and Hub Set | Bekijk product |
| ARAC9750 | ARAC9750 | ARRMA Serrated Flange Wheel Nut 4mm (4) | Bekijk product |
| ARA330807 | ARA330807 | ARRMA Hub Set (F+R) (STD) | Bekijk product |
| ARA340201 | ARA340201 | ARRMA Steering Link Set A: GROM | Bekijk product |
| ARA311182 | ARA311182 | ARRMA Input Gear Set | Bekijk product |
| ARA610053 | ARA610053 | ARRMA Ball Bearing 7x11x3mm (2RS) (4) | Bekijk product |
| ARA320812 | ARA320812 | ARRMA Body Parts Set | Bekijk product |
| ARA330807 | ARA330807 | ARRMA Hub Set (F+R) (STD) | Bekijk product |
| ARA311182 | ARA311182 | ARRMA Input Gear Set | Bekijk product |
| ARA330805 | ARA330805 | ARRMA Ball 5.8x7x2.5mm (10) | Bekijk product |
| ARA610053 | ARA610053 | ARRMA Ball Bearing 7x11x3mm (2RS) (4) | Bekijk product |
| ARA330809 | ARA330809 | ARRMA Front Suspension Arm Set A: GROM | Bekijk product |
| ARA412005 | ARA412005 | ARRMA TYPHON GROM Body, Blue/Silver | Bekijk product |
| ARA320814 | ARA320814 | ARRMA Battery Strap Set | Bekijk product |
| ARA311178 | ARA311178 | ARRMA Wheel Axle and Hub Set | Bekijk product |
| ARA412006 | ARA412006 | ARRMA TYPHON GROM Body, Red/White | Bekijk product |
| ARA311180 | ARA311180 | ARRMA CVD Driveshaft 50mm (2) | Bekijk product |
| ARA412007 | ARA412007 | ARRMA TYPHON GROM Body, Clear | Bekijk product |
| ARA311181 | ARA311181 | ARRMA CVD Rebuild Set | Bekijk product |
| ARA320751 | ARA320751 | ARRMA Hingepin 2.5x24mm (4) | Bekijk product |
| ARA320750 | ARA320750 | ARRMA Hingepin 2.5x37mm (4) | Bekijk product |
| ARA311177 | ARA311177 | Bekijk product | |
| ARA702010 | ARA702010 | ARRMA Cap Head Screw M2.5x8mm (10) | Bekijk product |
| ARA330805 | ARA330805 | ARRMA Ball 5.8x7x2.5mm (10) | Bekijk product |
| ARA330804 | ARA330804 | ARRMA Ball 4.8x4.9x2.5mm (10) | Bekijk product |
| ARA-1254 | ARA-1254 | ARRMA M2.5x8mm Button Head Screw With M3 Head (10) | Bekijk product |
| ARA320751 | ARA320751 | ARRMA Hingepin 2.5x24mm (4) | Bekijk product |
| ARA702010 | ARA702010 | ARRMA Cap Head Screw M2.5x8mm (10) | Bekijk product |
| ARA320751 | ARA320751 | ARRMA Hingepin 2.5x24mm (4) | Bekijk product |
| ARA702015 | ARA702015 | ARRMA Step Screw M2.5x16mm (10) | Bekijk product |
| ARA702017 | ARA702017 | ARRMA Flat Head Screw M2.5x12mm (10) | Bekijk product |
| ARA412005 | ARA412005 | ARRMA TYPHON GROM Body, Blue/Silver | Bekijk product |
| ARA330809 | ARA330809 | ARRMA Front Suspension Arm Set A: GROM | Bekijk product |
| ARA412006 | ARA412006 | ARRMA TYPHON GROM Body, Red/White | Bekijk product |
| ARA702017 | ARA702017 | ARRMA Flat Head Screw M2.5x12mm (10) | Bekijk product |
| ARA330809 | ARA330809 | ARRMA Front Suspension Arm Set A: GROM | Bekijk product |
| ARA412007 | ARA412007 | ARRMA TYPHON GROM Body, Clear | Bekijk product |
| ARA702015 | ARA702015 | ARRMA Step Screw M2.5x16mm (10) | Bekijk product |
| ARA320812 | ARA320812 | ARRMA Body Parts Set | Bekijk product |
| ARA610052 | ARA610052 | ARRMA Ball Bearing 8x12x3.5mm (2RS) (4) | Bekijk product |
| ARA311181 | ARA311181 | ARRMA CVD Rebuild Set | Bekijk product |
| ARA330803 | ARA330803 | ARRMA Ball 5.3x5.9x2.5mm (10) | Bekijk product |
| ARA311180 | ARA311180 | ARRMA CVD Driveshaft 50mm (2) | Bekijk product |
| ARA320813 | ARA320813 | ARRMA Shock Protector Set (4) | Bekijk product |
| ARA702010 | ARA702010 | ARRMA Cap Head Screw M2.5x8mm (10) | Bekijk product |
| ARA330805 | ARA330805 | ARRMA Ball 5.8x7x2.5mm (10) | Bekijk product |
| ARA702010 | ARA702010 | ARRMA Cap Head Screw M2.5x8mm (10) | Bekijk product |
| ARA320749 | ARA320749 | ARRMA Diff Cover Set (2): GROM | Bekijk product |
| ARA702011 | ARA702011 | ARRMA Cap Head Screw M2.5x12mm (10) | Bekijk product |
| ARA702019 | ARA702019 | ARRMA M2.5x12mm 5.5mm Hex Head (10) | Bekijk product |
| ARA702010 | ARA702010 | ARRMA Cap Head Screw M2.5x8mm (10) | Bekijk product |
| ARA320811 | ARA320811 | ARRMA Bumper Set (2) | Bekijk product |
| ARA340202 | ARA340202 | ARRMA Steering Set | Bekijk product |
| ARA330809 | ARA330809 | ARRMA Front Suspension Arm Set A: GROM | Bekijk product |
| ARA311178 | ARA311178 | ARRMA Wheel Axle and Hub Set | Bekijk product |
| ARA320750 | ARA320750 | ARRMA Hingepin 2.5x37mm (4) | Bekijk product |
| ARA702011 | ARA702011 | ARRMA Cap Head Screw M2.5x12mm (10) | Bekijk product |
| ARA702019 | ARA702019 | ARRMA M2.5x12mm 5.5mm Hex Head (10) | Bekijk product |
| ARA340201 | ARA340201 | ARRMA Steering Link Set A: GROM | Bekijk product |
| ARA330805 | ARA330805 | ARRMA Ball 5.8x7x2.5mm (10) | Bekijk product |
| ARA610053 | ARA610053 | ARRMA Ball Bearing 7x11x3mm (2RS) (4) | Bekijk product |
| ARA702010 | ARA702010 | ARRMA Cap Head Screw M2.5x8mm (10) | Bekijk product |
| ARA702010 | ARA702010 | ARRMA Cap Head Screw M2.5x8mm (10) | Bekijk product |
| ARA-1252 | ARA-1252 | ARRMA Shock Set, 58mm Length, 2000cSt Oil (2pcs) | Bekijk product |
| ARA330807 | ARA330807 | ARRMA Hub Set (F+R) (STD) | Bekijk product |
| ARA702016 | ARA702016 | ARRMA Flat Head Screw M2.5x8mm (10) | Bekijk product |
| ARA610053 | ARA610053 | ARRMA Ball Bearing 7x11x3mm (2RS) (4) | Bekijk product |
| ARAC9750 | ARAC9750 | ARRMA Serrated Flange Wheel Nut 4mm (4) | Bekijk product |
| ARA702017 | ARA702017 | ARRMA Flat Head Screw M2.5x12mm (10) | Bekijk product |
| ARA702019 | ARA702019 | ARRMA M2.5x12mm 5.5mm Hex Head (10) | Bekijk product |
| ARA311178 | ARA311178 | ARRMA Wheel Axle and Hub Set | Bekijk product |
