ARRMA Exploded View EV-ARA2137T1-315B2C38

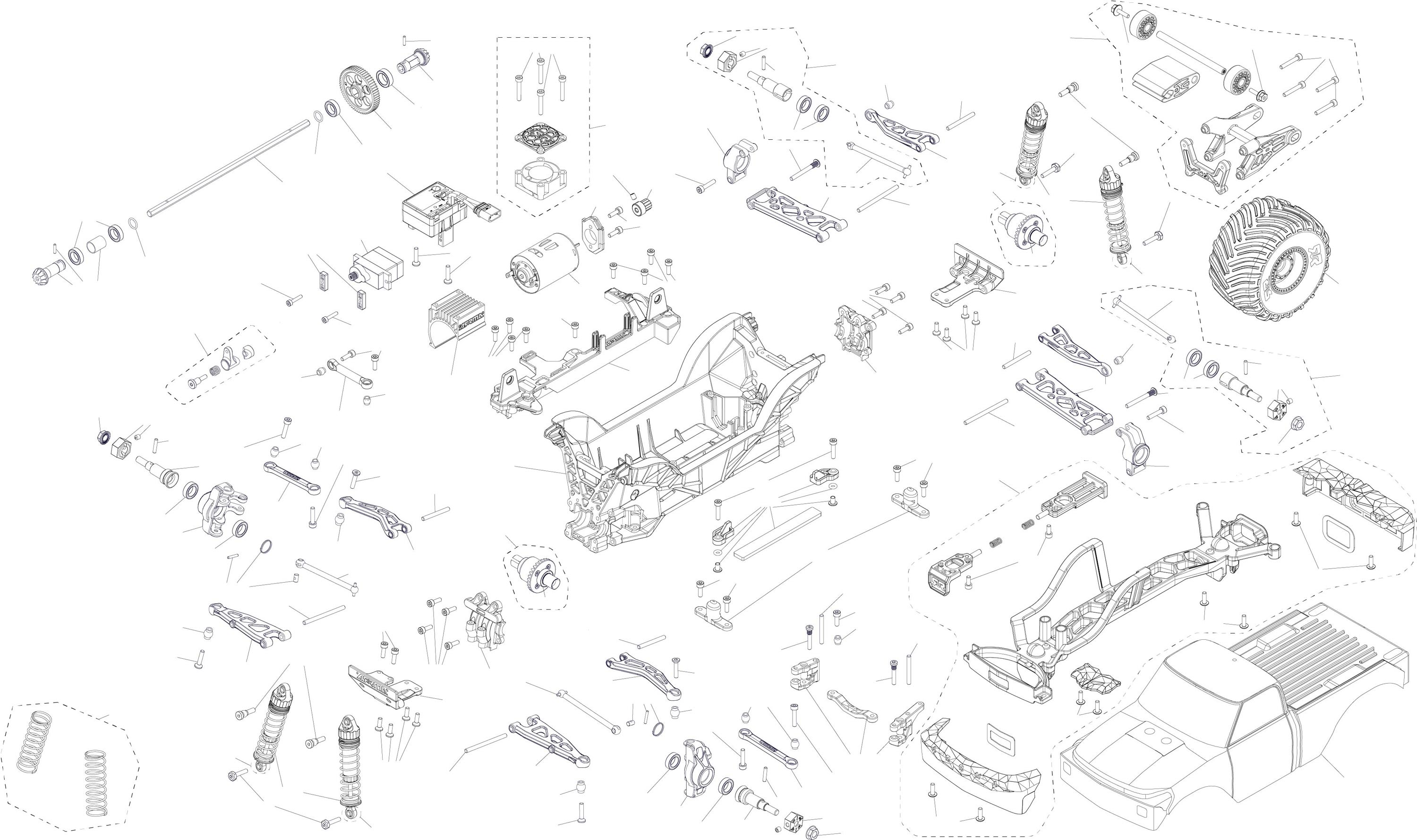

ARA2137T1 exploded view
View: EV-ARA2137T1-315B2C38 | Labels: 151 | Gekoppeld: 151 | Fitment-only: 0
ARAC9750 ARA-2600 ARA311182 ARA-2981 ARA-2980 ARA-2980 ARA702007 ARA702007 ARA311198 ARA-2151 ARA330804 ARA311182 ARA320751 ARA610052 ARA-2979 ARA-2756 ARA330807 ARA-2592 ARA610053 ARA702013 ARA610053 ARA702019 ARA311182 ARA330808 SPMXSE2625RX ARA702011 ARA724304 ARA-1495 ARA311179 ARA-2628 ARA-2593 ARA-3067 ARA330808 ARA-2591 ARA702019 ARA-2598 ARA320750 ARA610053 ARA702010 SPMSSX110 ARA702017 ARA610052 ARA311182 ARA702012 ARA-1495 ARA702010 ARA311182 ARA390305 ARA-2596 ARA702010 ARA311179 ARA-2585 ARA702010 ARA702012 ARA340203V2 ARA320751 ARA330804 ARA702010 ARA702016 ARA702010 ARA-2151 ARA311198 ARA-2599 ARA320749 ARA-2595 ARA330804 ARA610053 ARA-2981 ARA330808 ARA330804 ARA702013 ARAC9750 ARA-2594 ARA-2981 ARA320750 ARA702011 ARA-2151 ARA330803 ARAC9750 ARA702011 ARA702010 ARA702011 ARA311198 ARA-2597 ARA330807 ARA-2978 ARA702017 ARA702011 ARA320751 ARA-2583 ARA340201 ARA610053 ARA-3067 ARA330807 ARA330805 ARA610053 ARA-2587 ARA330809 ARA702008 ARA-1254 ARA311180 ARA702010 ARA311181 ARA320751 ARA610052 ARA320750 ARA702010 ARA-1254 ARA330805 ARA702010 ARA330804 ARA320751 ARA320751 ARA702015 ARA702017 ARA-2979 ARA330809 ARA702010 ARA320749 ARA702017 ARA311180 ARA330809 ARA702015 ARA-2893 ARA-2596 ARA311181 ARA330803 ARA330805 ARA-1254 ARA702011 ARA-2594 ARA-1495 ARA702016 ARA330809 ARA320750 ARA702011 ARA-2591 ARA340201 ARA330805 ARA610053 ARA-2588 ARA-2151 ARA702019 ARA330807 ARA-2981 ARA-1254 ARA311198 ARA610053 ARA702017 ARA-1495 ARAC9750| Label | Part SKU | Naam | Actie |
|---|---|---|---|
| ARAC9750 | ARAC9750 | ARRMA Serrated Flange Wheel Nut 4mm (4) | Bekijk product |
| ARA-2600 | ARA-2600 | ARRMA Wheelie Bar Set: GROM | Bekijk product |
| ARA311182 | ARA311182 | ARRMA Input Gear Set | Bekijk product |
| ARA-2981 | ARA-2981 | ARRMA 12mm Wheel Hex Set, Aluminum (4) | Bekijk product |
| ARA-2980 | ARA-2980 | ARRMA Wheelie Bar Screw Set (2): MT GROM | Bekijk product |
| ARA-2980 | ARA-2980 | ARRMA Wheelie Bar Screw Set (2): MT GROM | Bekijk product |
| ARA702007 | ARA702007 | ARRMA Cap Head Screw M2.5x16mm (10) | Bekijk product |
| ARA702007 | ARA702007 | ARRMA Cap Head Screw M2.5x16mm (10) | Bekijk product |
| ARA311198 | ARA311198 | ARRMA Metal Axle & Hex Set: GROM | Bekijk product |
| ARA-2151 | ARA-2151 | ARRMA Wheel Hex Pin Set 2x10mm (10) | Bekijk product |
| ARA330804 | ARA330804 | ARRMA Ball 4.8x4.9x2.5mm (10) | Bekijk product |
| ARA311182 | ARA311182 | ARRMA Input Gear Set | Bekijk product |
| ARA320751 | ARA320751 | ARRMA Hingepin 2.5x24mm (4) | Bekijk product |
| ARA610052 | ARA610052 | ARRMA Ball Bearing 8x12x3.5mm (2RS) (4) | Bekijk product |
| ARA-2979 | ARA-2979 | ARRMA M3 Shock Screw Set (4): MT GROM | Bekijk product |
| ARA-2756 | ARA-2756 | ARRMA 25mm Fan Set: GROM | Bekijk product |
| ARA330807 | ARA330807 | ARRMA Hub Set (F+R) (STD) | Bekijk product |
| ARA-2592 | ARA-2592 | ARRMA Spur Gear 61T MOD 0.5: GROM | Bekijk product |
| ARA610053 | ARA610053 | ARRMA Ball Bearing 7x11x3mm (2RS) (4) | Bekijk product |
| ARA702013 | ARA702013 | ARRMA Button Head Screw Pin M3x24mm (10) | Bekijk product |
| ARA610053 | ARA610053 | ARRMA Ball Bearing 7x11x3mm (2RS) (4) | Bekijk product |
| ARA702019 | ARA702019 | ARRMA M2.5x12mm 5.5mm Hex Head (10) | Bekijk product |
| ARA311182 | ARA311182 | ARRMA Input Gear Set | Bekijk product |
| ARA330808 | ARA330808 | ARRMA Rear Suspension Arm Set A: GROM | Bekijk product |
| SPMXSE2625RX | SPMXSE2625RX | Spektrum Accessories 25A SLT 2-in-1 ESC / Receiver Combo: GROM | Bekijk product |
| ARA702011 | ARA702011 | ARRMA Cap Head Screw M2.5x12mm (10) | Bekijk product |
| ARA724304 | ARA724304 | ARRMA Set Screw M3x4mm (10) | Bekijk product |
| ARA-1495 | ARA-1495 | ARRMA Shock Rod End Set: GROM | Bekijk product |
| ARA311179 | ARA311179 | ARRMA Dogbone 50mm (2) | Bekijk product |
| ARA-2628 | ARA-2628 | ARRMA Pinion Gear 13T MOD 0.5 CNC 2.3mm Bore | Bekijk product |
| ARA-2593 | ARA-2593 | ARRMA Center Driveshaft Steel for 176mm Chassis: GROM | Bekijk product |
| ARA-3067 | ARA-3067 | ARRMA Assembled Oil Filled Differential 30T 0.8Mod, 3000cSt Oil: GROM | Bekijk product |
| ARA330808 | ARA330808 | ARRMA Rear Suspension Arm Set A: GROM | Bekijk product |
| ARA-2591 | ARA-2591 | ARRMA Shock Set, 71mm Length, 500cSt Oil (4): GROM | Bekijk product |
| ARA702019 | ARA702019 | ARRMA M2.5x12mm 5.5mm Hex Head (10) | Bekijk product |
| ARA-2598 | ARA-2598 | ARRMA Motor Plate Set (9): GROM | Bekijk product |
| ARA320750 | ARA320750 | ARRMA Hingepin 2.5x37mm (4) | Bekijk product |
| ARA610053 | ARA610053 | ARRMA Ball Bearing 7x11x3mm (2RS) (4) | Bekijk product |
| ARA702010 | ARA702010 | ARRMA Cap Head Screw M2.5x8mm (10) | Bekijk product |
| SPMSSX110 | SPMSSX110 | Spektrum Micro Metal Gear Servo | Bekijk product |
| ARA702017 | ARA702017 | ARRMA Flat Head Screw M2.5x12mm (10) | Bekijk product |
| ARA610052 | ARA610052 | ARRMA Ball Bearing 8x12x3.5mm (2RS) (4) | Bekijk product |
| ARA311182 | ARA311182 | ARRMA Input Gear Set | Bekijk product |
| ARA702012 | ARA702012 | ARRMA Cap Head Screw M2x10mm (10) | Bekijk product |
| ARA-1495 | ARA-1495 | ARRMA Shock Rod End Set: GROM | Bekijk product |
| ARA702010 | ARA702010 | ARRMA Cap Head Screw M2.5x8mm (10) | Bekijk product |
| ARA311182 | ARA311182 | ARRMA Input Gear Set | Bekijk product |
| ARA390305 | ARA390305 | ARRMA Mega 380 Brushed Motor | Bekijk product |
| ARA-2596 | ARA-2596 | ARRMA Lower Bumper Set: GROM | Bekijk product |
| ARA702010 | ARA702010 | ARRMA Cap Head Screw M2.5x8mm (10) | Bekijk product |
| ARA311179 | ARA311179 | ARRMA Dogbone 50mm (2) | Bekijk product |
| ARA-2585 | ARA-2585 | ARRMA dBoots Chevron MT Tire Set Glued, Red (2 Pairs): GROM | Bekijk product |
| ARA702010 | ARA702010 | ARRMA Cap Head Screw M2.5x8mm (10) | Bekijk product |
| ARA702012 | ARA702012 | ARRMA Cap Head Screw M2x10mm (10) | Bekijk product |
| ARA340203V2 | ARA340203V2 | ARRMA Servo Saver Set | Bekijk product |
| ARA320751 | ARA320751 | ARRMA Hingepin 2.5x24mm (4) | Bekijk product |
| ARA330804 | ARA330804 | ARRMA Ball 4.8x4.9x2.5mm (10) | Bekijk product |
| ARA702010 | ARA702010 | ARRMA Cap Head Screw M2.5x8mm (10) | Bekijk product |
| ARA702016 | ARA702016 | ARRMA Flat Head Screw M2.5x8mm (10) | Bekijk product |
| ARA702010 | ARA702010 | ARRMA Cap Head Screw M2.5x8mm (10) | Bekijk product |
| ARA-2151 | ARA-2151 | ARRMA Wheel Hex Pin Set 2x10mm (10) | Bekijk product |
| ARA311198 | ARA311198 | ARRMA Metal Axle & Hex Set: GROM | Bekijk product |
| ARA-2599 | ARA-2599 | ARRMA Composite Top Deck (176mm): GROM | Bekijk product |
| ARA320749 | ARA320749 | ARRMA Diff Cover Set (2): GROM | Bekijk product |
| ARA-2595 | ARA-2595 | ARRMA GROM Motor Heatsink Type E | Bekijk product |
| ARA330804 | ARA330804 | ARRMA Ball 4.8x4.9x2.5mm (10) | Bekijk product |
| ARA610053 | ARA610053 | ARRMA Ball Bearing 7x11x3mm (2RS) (4) | Bekijk product |
| ARA-2981 | ARA-2981 | ARRMA 12mm Wheel Hex Set, Aluminum (4) | Bekijk product |
| ARA330808 | ARA330808 | ARRMA Rear Suspension Arm Set A: GROM | Bekijk product |
| ARA330804 | ARA330804 | ARRMA Ball 4.8x4.9x2.5mm (10) | Bekijk product |
| ARA702013 | ARA702013 | ARRMA Button Head Screw Pin M3x24mm (10) | Bekijk product |
| ARAC9750 | ARAC9750 | ARRMA Serrated Flange Wheel Nut 4mm (4) | Bekijk product |
| ARA-2594 | ARA-2594 | ARRMA Steering Parts Set: GROM | Bekijk product |
| ARA-2981 | ARA-2981 | ARRMA 12mm Wheel Hex Set, Aluminum (4) | Bekijk product |
| ARA320750 | ARA320750 | ARRMA Hingepin 2.5x37mm (4) | Bekijk product |
| ARA702011 | ARA702011 | ARRMA Cap Head Screw M2.5x12mm (10) | Bekijk product |
| ARA-2151 | ARA-2151 | ARRMA Wheel Hex Pin Set 2x10mm (10) | Bekijk product |
| ARA330803 | ARA330803 | ARRMA Ball 5.3x5.9x2.5mm (10) | Bekijk product |
| ARAC9750 | ARAC9750 | ARRMA Serrated Flange Wheel Nut 4mm (4) | Bekijk product |
| ARA702011 | ARA702011 | ARRMA Cap Head Screw M2.5x12mm (10) | Bekijk product |
| ARA702010 | ARA702010 | ARRMA Cap Head Screw M2.5x8mm (10) | Bekijk product |
| ARA702011 | ARA702011 | ARRMA Cap Head Screw M2.5x12mm (10) | Bekijk product |
| ARA311198 | ARA311198 | ARRMA Metal Axle & Hex Set: GROM | Bekijk product |
| ARA-2597 | ARA-2597 | ARRMA Composite Chassis (176mm): GROM | Bekijk product |
| ARA330807 | ARA330807 | ARRMA Hub Set (F+R) (STD) | Bekijk product |
| ARA-2978 | ARA-2978 | Bekijk product | |
| ARA702017 | ARA702017 | ARRMA Flat Head Screw M2.5x12mm (10) | Bekijk product |
| ARA702011 | ARA702011 | ARRMA Cap Head Screw M2.5x12mm (10) | Bekijk product |
| ARA320751 | ARA320751 | ARRMA Hingepin 2.5x24mm (4) | Bekijk product |
| ARA-2583 | ARA-2583 | ARRMA Battery Parts Set for 176mm Chassis: GROM | Bekijk product |
| ARA340201 | ARA340201 | ARRMA Steering Link Set A: GROM | Bekijk product |
| ARA610053 | ARA610053 | ARRMA Ball Bearing 7x11x3mm (2RS) (4) | Bekijk product |
| ARA-3067 | ARA-3067 | ARRMA Assembled Oil Filled Differential 30T 0.8Mod, 3000cSt Oil: GROM | Bekijk product |
| ARA330807 | ARA330807 | ARRMA Hub Set (F+R) (STD) | Bekijk product |
| ARA330805 | ARA330805 | ARRMA Ball 5.8x7x2.5mm (10) | Bekijk product |
| ARA610053 | ARA610053 | ARRMA Ball Bearing 7x11x3mm (2RS) (4) | Bekijk product |
| ARA-2587 | ARA-2587 | ARRMA GROM MT Body Post Set | Bekijk product |
| ARA330809 | ARA330809 | ARRMA Front Suspension Arm Set A: GROM | Bekijk product |
| ARA702008 | ARA702008 | ARRMA Cap Head Hex Machine Screw, M2.5x6mm (10) | Bekijk product |
| ARA-1254 | ARA-1254 | ARRMA M2.5x8mm Button Head Screw With M3 Head (10) | Bekijk product |
| ARA311180 | ARA311180 | ARRMA CVD Driveshaft 50mm (2) | Bekijk product |
| ARA702010 | ARA702010 | ARRMA Cap Head Screw M2.5x8mm (10) | Bekijk product |
| ARA311181 | ARA311181 | ARRMA CVD Rebuild Set | Bekijk product |
| ARA320751 | ARA320751 | ARRMA Hingepin 2.5x24mm (4) | Bekijk product |
| ARA610052 | ARA610052 | ARRMA Ball Bearing 8x12x3.5mm (2RS) (4) | Bekijk product |
| ARA320750 | ARA320750 | ARRMA Hingepin 2.5x37mm (4) | Bekijk product |
| ARA702010 | ARA702010 | ARRMA Cap Head Screw M2.5x8mm (10) | Bekijk product |
| ARA-1254 | ARA-1254 | ARRMA M2.5x8mm Button Head Screw With M3 Head (10) | Bekijk product |
| ARA330805 | ARA330805 | ARRMA Ball 5.8x7x2.5mm (10) | Bekijk product |
| ARA702010 | ARA702010 | ARRMA Cap Head Screw M2.5x8mm (10) | Bekijk product |
| ARA330804 | ARA330804 | ARRMA Ball 4.8x4.9x2.5mm (10) | Bekijk product |
| ARA320751 | ARA320751 | ARRMA Hingepin 2.5x24mm (4) | Bekijk product |
| ARA320751 | ARA320751 | ARRMA Hingepin 2.5x24mm (4) | Bekijk product |
| ARA702015 | ARA702015 | ARRMA Step Screw M2.5x16mm (10) | Bekijk product |
| ARA702017 | ARA702017 | ARRMA Flat Head Screw M2.5x12mm (10) | Bekijk product |
| ARA-2979 | ARA-2979 | ARRMA M3 Shock Screw Set (4): MT GROM | Bekijk product |
| ARA330809 | ARA330809 | ARRMA Front Suspension Arm Set A: GROM | Bekijk product |
| ARA702010 | ARA702010 | ARRMA Cap Head Screw M2.5x8mm (10) | Bekijk product |
| ARA320749 | ARA320749 | ARRMA Diff Cover Set (2): GROM | Bekijk product |
| ARA702017 | ARA702017 | ARRMA Flat Head Screw M2.5x12mm (10) | Bekijk product |
| ARA311180 | ARA311180 | ARRMA CVD Driveshaft 50mm (2) | Bekijk product |
| ARA330809 | ARA330809 | ARRMA Front Suspension Arm Set A: GROM | Bekijk product |
| ARA702015 | ARA702015 | ARRMA Step Screw M2.5x16mm (10) | Bekijk product |
| ARA-2893 | ARA-2893 | ARRMA Shock Spring Set E, 0.50N/mm, Red (4): GROM | Bekijk product |
| ARA-2596 | ARA-2596 | ARRMA Lower Bumper Set: GROM | Bekijk product |
| ARA311181 | ARA311181 | ARRMA CVD Rebuild Set | Bekijk product |
| ARA330803 | ARA330803 | ARRMA Ball 5.3x5.9x2.5mm (10) | Bekijk product |
| ARA330805 | ARA330805 | ARRMA Ball 5.8x7x2.5mm (10) | Bekijk product |
| ARA-1254 | ARA-1254 | ARRMA M2.5x8mm Button Head Screw With M3 Head (10) | Bekijk product |
| ARA702011 | ARA702011 | ARRMA Cap Head Screw M2.5x12mm (10) | Bekijk product |
| ARA-2594 | ARA-2594 | ARRMA Steering Parts Set: GROM | Bekijk product |
| ARA-1495 | ARA-1495 | ARRMA Shock Rod End Set: GROM | Bekijk product |
| ARA702016 | ARA702016 | ARRMA Flat Head Screw M2.5x8mm (10) | Bekijk product |
| ARA330809 | ARA330809 | ARRMA Front Suspension Arm Set A: GROM | Bekijk product |
| ARA320750 | ARA320750 | ARRMA Hingepin 2.5x37mm (4) | Bekijk product |
| ARA702011 | ARA702011 | ARRMA Cap Head Screw M2.5x12mm (10) | Bekijk product |
| ARA-2591 | ARA-2591 | ARRMA Shock Set, 71mm Length, 500cSt Oil (4): GROM | Bekijk product |
| ARA340201 | ARA340201 | ARRMA Steering Link Set A: GROM | Bekijk product |
| ARA330805 | ARA330805 | ARRMA Ball 5.8x7x2.5mm (10) | Bekijk product |
| ARA610053 | ARA610053 | ARRMA Ball Bearing 7x11x3mm (2RS) (4) | Bekijk product |
| ARA-2588 | ARA-2588 | ARRMA QUAKE GROM Body, Red | Bekijk product |
| ARA-2151 | ARA-2151 | ARRMA Wheel Hex Pin Set 2x10mm (10) | Bekijk product |
| ARA702019 | ARA702019 | ARRMA M2.5x12mm 5.5mm Hex Head (10) | Bekijk product |
| ARA330807 | ARA330807 | ARRMA Hub Set (F+R) (STD) | Bekijk product |
| ARA-2981 | ARA-2981 | ARRMA 12mm Wheel Hex Set, Aluminum (4) | Bekijk product |
| ARA-1254 | ARA-1254 | ARRMA M2.5x8mm Button Head Screw With M3 Head (10) | Bekijk product |
| ARA311198 | ARA311198 | ARRMA Metal Axle & Hex Set: GROM | Bekijk product |
| ARA610053 | ARA610053 | ARRMA Ball Bearing 7x11x3mm (2RS) (4) | Bekijk product |
| ARA702017 | ARA702017 | ARRMA Flat Head Screw M2.5x12mm (10) | Bekijk product |
| ARA-1495 | ARA-1495 | ARRMA Shock Rod End Set: GROM | Bekijk product |
| ARAC9750 | ARAC9750 | ARRMA Serrated Flange Wheel Nut 4mm (4) | Bekijk product |
