ARRMA Exploded View EV-ARA2304S-0ECBDC30

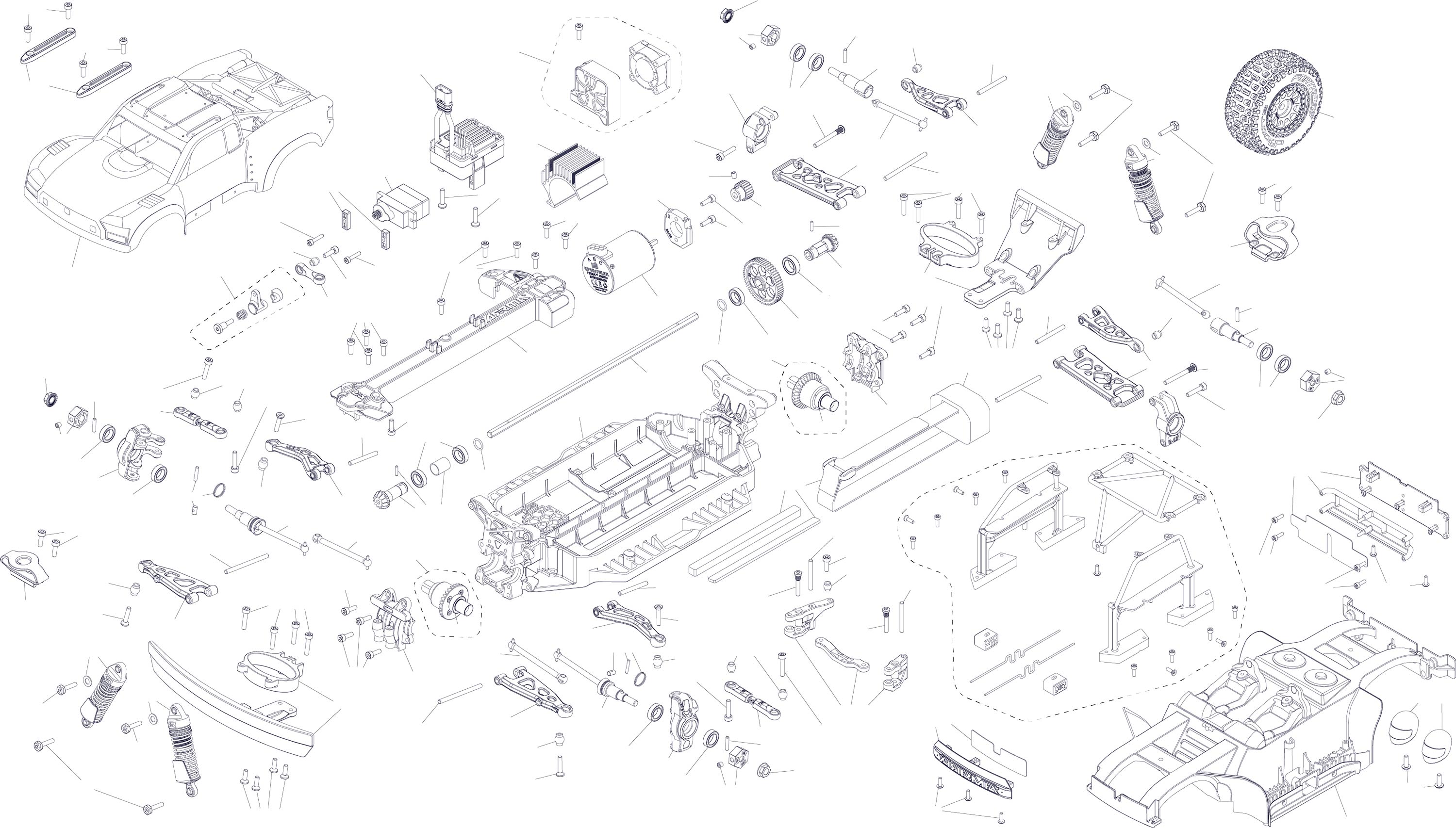

ARA2304S exploded view
View: EV-ARA2304S-0ECBDC30 | Labels: 157 | Gekoppeld: 157 | Fitment-only: 0
ARAC9750 ARA702010 ARA-2151 ARA311231 ARA330804 ARA702010 ARA-1251 ARA320751 ARA311231 SPMXSBER1025G ARA320818 ARA330841 ARA610053 ARA-1567 ARA702019 ARA-1570 ARA-1571 ARA702013 ARA330840 ARA702011 ARA-1419 ARA311227 ARA-1567 ARA330840 ARA702019 SPMSSX110 ARA320750 ARA724304 ARA702010 ARA702011 ARA702017 ARA320744 ARA-2022 ARA702012 ARA702010 ARA311182 ARA702010 ARA320818 ARA330804 ARA702012 ARA702010 ARA340203V2 ARA311182 ARA-1564 ARA320817 ARA311227 ARA702010 ARA-1565 ARA610052 ARA340217 ARA702010 SPMXSM4400 ARA-2151 ARA320751 ARA330804 ARA702010 ARA311196 ARA702010 ARA311231 ARA610053 ARA311182 ARA702016 ARA311193 ARA320816 ARA330840 ARA-1418 ARA702013 ARAC9750 ARA311228 ARA311231 ARA330803 ARA702011 ARA610053 ARA-2151 ARA702011 ARA320749 ARA320750 ARA340217 ARA320815 ARA702011 ARA702010 ARA702017 ARAC9750 ARA610052 ARA320751 ARA311231 ARA610053 ARA330841 ARA610053 ARA320818 ARA311182 ARA330841 ARA-1418 ARA330805 ARA610053 ARA311181 ARA330839 ARA311182 ARA311231 ARA702010 ARA340202 ARA311226 ARA320750 ARA311193 ARA702010 ARA702010 ARA330804 ARA-1568 ARA330805 ARA-1569 ARA-1254 ARA340202 ARA702010 ARA702010 ARA320751 ARA702015 ARA320818 ARA702011 ARA702017 ARA702017 ARA330839 ARA610052 ARA330839 ARA702015 ARA311181 ARA330803 ARA-1567 ARA311226 ARA330805 ARA702010 ARA320749 ARA702011 ARA-1567 ARA320823 ARA320817 ARA702019 ARA340202 ARA311231 ARA330839 ARA320818 ARA320750 ARA702011 ARA340217 ARA-2151 ARA702019 ARA330805 ARA610053 ARA330841 ARAC9750 ARA702017 ARA610053 ARA702019 ARA-1254 ARA311231 ARA-1254 ARA702016 ARA320822| Label | Part SKU | Naam | Actie |
|---|---|---|---|
| ARAC9750 | ARAC9750 | ARRMA Serrated Flange Wheel Nut 4mm (4) | Bekijk product |
| ARA702010 | ARA702010 | ARRMA Cap Head Screw M2.5x8mm (10) | Bekijk product |
| ARA-2151 | ARA-2151 | ARRMA Wheel Hex Pin Set 2x10mm (10) | Bekijk product |
| ARA311231 | ARA311231 | ARRMA Metal Axle & Wheel Hex Set B (4): GROM | Bekijk product |
| ARA330804 | ARA330804 | ARRMA Ball 4.8x4.9x2.5mm (10) | Bekijk product |
| ARA702010 | ARA702010 | ARRMA Cap Head Screw M2.5x8mm (10) | Bekijk product |
| ARA-1251 | ARA-1251 | ARRMA Motor Fan & Mount Set: GROM | Bekijk product |
| ARA320751 | ARA320751 | ARRMA Hingepin 2.5x24mm (4) | Bekijk product |
| ARA311231 | ARA311231 | ARRMA Metal Axle & Wheel Hex Set B (4): GROM | Bekijk product |
| SPMXSBER1025G | SPMXSBER1025G | Bekijk product | |
| ARA320818 | ARA320818 | ARRMA Desert Truck Body Parts Set: GROM | Bekijk product |
| ARA330841 | ARA330841 | ARRMA Hub Set B (Front/Rear): GROM | Bekijk product |
| ARA610053 | ARA610053 | ARRMA Ball Bearing 7x11x3mm (2RS) (4) | Bekijk product |
| ARA-1567 | ARA-1567 | ARRMA Aluminum Shock Set, 58mm Length, 1000 cSt Oil (4), Black: GROM | Bekijk product |
| ARA702019 | ARA702019 | ARRMA M2.5x12mm 5.5mm Hex Head (10) | Bekijk product |
| ARA-1570 | ARA-1570 | ARRMA dBoots 'FORTRESS' Glued Tire Set, Purple (2 Pairs) | Bekijk product |
| ARA-1571 | ARA-1571 | ARRMA dBoots 'FORTRESS' Glued Tire Set, Blue (2 Pairs) | Bekijk product |
| ARA702013 | ARA702013 | ARRMA Button Head Screw Pin M3x24mm (10) | Bekijk product |
| ARA330840 | ARA330840 | ARRMA Rear Suspension Arm Set B: GROM | Bekijk product |
| ARA702011 | ARA702011 | ARRMA Cap Head Screw M2.5x12mm (10) | Bekijk product |
| ARA-1419 | ARA-1419 | ARRMA Motor Heatsink Type C: GROM | Bekijk product |
| ARA311227 | ARA311227 | ARRMA Dogbone 40.5mm (2) | Bekijk product |
| ARA-1567 | ARA-1567 | ARRMA Aluminum Shock Set, 58mm Length, 1000 cSt Oil (4), Black: GROM | Bekijk product |
| ARA330840 | ARA330840 | ARRMA Rear Suspension Arm Set B: GROM | Bekijk product |
| ARA702019 | ARA702019 | ARRMA M2.5x12mm 5.5mm Hex Head (10) | Bekijk product |
| SPMSSX110 | SPMSSX110 | Spektrum Micro Metal Gear Servo | Bekijk product |
| ARA320750 | ARA320750 | ARRMA Hingepin 2.5x37mm (4) | Bekijk product |
| ARA724304 | ARA724304 | ARRMA Set Screw M3x4mm (10) | Bekijk product |
| ARA702010 | ARA702010 | ARRMA Cap Head Screw M2.5x8mm (10) | Bekijk product |
| ARA702011 | ARA702011 | ARRMA Cap Head Screw M2.5x12mm (10) | Bekijk product |
| ARA702017 | ARA702017 | ARRMA Flat Head Screw M2.5x12mm (10) | Bekijk product |
| ARA320744 | ARA320744 | ARRMA Motor Mount Set (8) | Bekijk product |
| ARA-2022 | ARA-2022 | ARRMA Pinion Gear 22T MOD 0.5 CNC 3.2mm Bore | Bekijk product |
| ARA702012 | ARA702012 | ARRMA Cap Head Screw M2x10mm (10) | Bekijk product |
| ARA702010 | ARA702010 | ARRMA Cap Head Screw M2.5x8mm (10) | Bekijk product |
| ARA311182 | ARA311182 | ARRMA Input Gear Set | Bekijk product |
| ARA702010 | ARA702010 | ARRMA Cap Head Screw M2.5x8mm (10) | Bekijk product |
| ARA320818 | ARA320818 | ARRMA Desert Truck Body Parts Set: GROM | Bekijk product |
| ARA330804 | ARA330804 | ARRMA Ball 4.8x4.9x2.5mm (10) | Bekijk product |
| ARA702012 | ARA702012 | ARRMA Cap Head Screw M2x10mm (10) | Bekijk product |
| ARA702010 | ARA702010 | ARRMA Cap Head Screw M2.5x8mm (10) | Bekijk product |
| ARA340203V2 | ARA340203V2 | ARRMA Servo Saver Set | Bekijk product |
| ARA311182 | ARA311182 | ARRMA Input Gear Set | Bekijk product |
| ARA-1564 | ARA-1564 | ARRMA MOJAVE GROM Body, Teal/Pink | Bekijk product |
| ARA320817 | ARA320817 | ARRMA Desert Truck Bumper Set (2): GROM | Bekijk product |
| ARA311227 | ARA311227 | ARRMA Dogbone 40.5mm (2) | Bekijk product |
| ARA702010 | ARA702010 | ARRMA Cap Head Screw M2.5x8mm (10) | Bekijk product |
| ARA-1565 | ARA-1565 | ARRMA MOJAVE GROM Body, White/Blue | Bekijk product |
| ARA610052 | ARA610052 | ARRMA Ball Bearing 8x12x3.5mm (2RS) (4) | Bekijk product |
| ARA340217 | ARA340217 | ARRMA Aluminum Adjustable Steering Links Set B (2): MOJAVE GROM | Bekijk product |
| ARA702010 | ARA702010 | ARRMA Cap Head Screw M2.5x8mm (10) | Bekijk product |
| SPMXSM4400 | SPMXSM4400 | Bekijk product | |
| ARA-2151 | ARA-2151 | ARRMA Wheel Hex Pin Set 2x10mm (10) | Bekijk product |
| ARA320751 | ARA320751 | ARRMA Hingepin 2.5x24mm (4) | Bekijk product |
| ARA330804 | ARA330804 | ARRMA Ball 4.8x4.9x2.5mm (10) | Bekijk product |
| ARA702010 | ARA702010 | ARRMA Cap Head Screw M2.5x8mm (10) | Bekijk product |
| ARA311196 | ARA311196 | ARRMA Metal Spur Gear 59T | Bekijk product |
| ARA702010 | ARA702010 | ARRMA Cap Head Screw M2.5x8mm (10) | Bekijk product |
| ARA311231 | ARA311231 | ARRMA Metal Axle & Wheel Hex Set B (4): GROM | Bekijk product |
| ARA610053 | ARA610053 | ARRMA Ball Bearing 7x11x3mm (2RS) (4) | Bekijk product |
| ARA311182 | ARA311182 | ARRMA Input Gear Set | Bekijk product |
| ARA702016 | ARA702016 | ARRMA Flat Head Screw M2.5x8mm (10) | Bekijk product |
| ARA311193 | ARA311193 | Bekijk product | |
| ARA320816 | ARA320816 | ARRMA Composite Top Deck, 204mm: GROM | Bekijk product |
| ARA330840 | ARA330840 | ARRMA Rear Suspension Arm Set B: GROM | Bekijk product |
| ARA-1418 | ARA-1418 | ARRMA Battery Strap Set for 200mm Chassis: GROM | Bekijk product |
| ARA702013 | ARA702013 | ARRMA Button Head Screw Pin M3x24mm (10) | Bekijk product |
| ARAC9750 | ARAC9750 | ARRMA Serrated Flange Wheel Nut 4mm (4) | Bekijk product |
| ARA311228 | ARA311228 | ARRMA Center Driveshaft Steel 181mm for 204mm Chassis: GROM | Bekijk product |
| ARA311231 | ARA311231 | ARRMA Metal Axle & Wheel Hex Set B (4): GROM | Bekijk product |
| ARA330803 | ARA330803 | ARRMA Ball 5.3x5.9x2.5mm (10) | Bekijk product |
| ARA702011 | ARA702011 | ARRMA Cap Head Screw M2.5x12mm (10) | Bekijk product |
| ARA610053 | ARA610053 | ARRMA Ball Bearing 7x11x3mm (2RS) (4) | Bekijk product |
| ARA-2151 | ARA-2151 | ARRMA Wheel Hex Pin Set 2x10mm (10) | Bekijk product |
| ARA702011 | ARA702011 | ARRMA Cap Head Screw M2.5x12mm (10) | Bekijk product |
| ARA320749 | ARA320749 | ARRMA Diff Cover Set (2): GROM | Bekijk product |
| ARA320750 | ARA320750 | ARRMA Hingepin 2.5x37mm (4) | Bekijk product |
| ARA340217 | ARA340217 | ARRMA Aluminum Adjustable Steering Links Set B (2): MOJAVE GROM | Bekijk product |
| ARA320815 | ARA320815 | ARRMA Composite Chassis, 204mm: GROM | Bekijk product |
| ARA702011 | ARA702011 | ARRMA Cap Head Screw M2.5x12mm (10) | Bekijk product |
| ARA702010 | ARA702010 | ARRMA Cap Head Screw M2.5x8mm (10) | Bekijk product |
| ARA702017 | ARA702017 | ARRMA Flat Head Screw M2.5x12mm (10) | Bekijk product |
| ARAC9750 | ARAC9750 | ARRMA Serrated Flange Wheel Nut 4mm (4) | Bekijk product |
| ARA610052 | ARA610052 | ARRMA Ball Bearing 8x12x3.5mm (2RS) (4) | Bekijk product |
| ARA320751 | ARA320751 | ARRMA Hingepin 2.5x24mm (4) | Bekijk product |
| ARA311231 | ARA311231 | ARRMA Metal Axle & Wheel Hex Set B (4): GROM | Bekijk product |
| ARA610053 | ARA610053 | ARRMA Ball Bearing 7x11x3mm (2RS) (4) | Bekijk product |
| ARA330841 | ARA330841 | ARRMA Hub Set B (Front/Rear): GROM | Bekijk product |
| ARA610053 | ARA610053 | ARRMA Ball Bearing 7x11x3mm (2RS) (4) | Bekijk product |
| ARA320818 | ARA320818 | ARRMA Desert Truck Body Parts Set: GROM | Bekijk product |
| ARA311182 | ARA311182 | ARRMA Input Gear Set | Bekijk product |
| ARA330841 | ARA330841 | ARRMA Hub Set B (Front/Rear): GROM | Bekijk product |
| ARA-1418 | ARA-1418 | ARRMA Battery Strap Set for 200mm Chassis: GROM | Bekijk product |
| ARA330805 | ARA330805 | ARRMA Ball 5.8x7x2.5mm (10) | Bekijk product |
| ARA610053 | ARA610053 | ARRMA Ball Bearing 7x11x3mm (2RS) (4) | Bekijk product |
| ARA311181 | ARA311181 | ARRMA CVD Rebuild Set | Bekijk product |
| ARA330839 | ARA330839 | ARRMA Front Suspension Arm Set B: GROM | Bekijk product |
| ARA311182 | ARA311182 | ARRMA Input Gear Set | Bekijk product |
| ARA311231 | ARA311231 | ARRMA Metal Axle & Wheel Hex Set B (4): GROM | Bekijk product |
| ARA702010 | ARA702010 | ARRMA Cap Head Screw M2.5x8mm (10) | Bekijk product |
| ARA340202 | ARA340202 | ARRMA Steering Set | Bekijk product |
| ARA311226 | ARA311226 | ARRMA CVD Driveshaft 44mm (2) | Bekijk product |
| ARA320750 | ARA320750 | ARRMA Hingepin 2.5x37mm (4) | Bekijk product |
| ARA311193 | ARA311193 | Bekijk product | |
| ARA702010 | ARA702010 | ARRMA Cap Head Screw M2.5x8mm (10) | Bekijk product |
| ARA702010 | ARA702010 | ARRMA Cap Head Screw M2.5x8mm (10) | Bekijk product |
| ARA330804 | ARA330804 | ARRMA Ball 4.8x4.9x2.5mm (10) | Bekijk product |
| ARA-1568 | ARA-1568 | ARRMA Desert Truck Body Roll Cage Set, Purple: GROM | Bekijk product |
| ARA330805 | ARA330805 | ARRMA Ball 5.8x7x2.5mm (10) | Bekijk product |
| ARA-1569 | ARA-1569 | ARRMA Desert Truck Body Roll Cage Set, Blue: GROM | Bekijk product |
| ARA-1254 | ARA-1254 | ARRMA M2.5x8mm Button Head Screw With M3 Head (10) | Bekijk product |
| ARA340202 | ARA340202 | ARRMA Steering Set | Bekijk product |
| ARA702010 | ARA702010 | ARRMA Cap Head Screw M2.5x8mm (10) | Bekijk product |
| ARA702010 | ARA702010 | ARRMA Cap Head Screw M2.5x8mm (10) | Bekijk product |
| ARA320751 | ARA320751 | ARRMA Hingepin 2.5x24mm (4) | Bekijk product |
| ARA702015 | ARA702015 | ARRMA Step Screw M2.5x16mm (10) | Bekijk product |
| ARA320818 | ARA320818 | ARRMA Desert Truck Body Parts Set: GROM | Bekijk product |
| ARA702011 | ARA702011 | ARRMA Cap Head Screw M2.5x12mm (10) | Bekijk product |
| ARA702017 | ARA702017 | ARRMA Flat Head Screw M2.5x12mm (10) | Bekijk product |
| ARA702017 | ARA702017 | ARRMA Flat Head Screw M2.5x12mm (10) | Bekijk product |
| ARA330839 | ARA330839 | ARRMA Front Suspension Arm Set B: GROM | Bekijk product |
| ARA610052 | ARA610052 | ARRMA Ball Bearing 8x12x3.5mm (2RS) (4) | Bekijk product |
| ARA330839 | ARA330839 | ARRMA Front Suspension Arm Set B: GROM | Bekijk product |
| ARA702015 | ARA702015 | ARRMA Step Screw M2.5x16mm (10) | Bekijk product |
| ARA311181 | ARA311181 | ARRMA CVD Rebuild Set | Bekijk product |
| ARA330803 | ARA330803 | ARRMA Ball 5.3x5.9x2.5mm (10) | Bekijk product |
| ARA-1567 | ARA-1567 | ARRMA Aluminum Shock Set, 58mm Length, 1000 cSt Oil (4), Black: GROM | Bekijk product |
| ARA311226 | ARA311226 | ARRMA CVD Driveshaft 44mm (2) | Bekijk product |
| ARA330805 | ARA330805 | ARRMA Ball 5.8x7x2.5mm (10) | Bekijk product |
| ARA702010 | ARA702010 | ARRMA Cap Head Screw M2.5x8mm (10) | Bekijk product |
| ARA320749 | ARA320749 | ARRMA Diff Cover Set (2): GROM | Bekijk product |
| ARA702011 | ARA702011 | ARRMA Cap Head Screw M2.5x12mm (10) | Bekijk product |
| ARA-1567 | ARA-1567 | ARRMA Aluminum Shock Set, 58mm Length, 1000 cSt Oil (4), Black: GROM | Bekijk product |
| ARA320823 | ARA320823 | ARRMA Desert Truck Driver Helmet Set: GROM | Bekijk product |
| ARA320817 | ARA320817 | ARRMA Desert Truck Bumper Set (2): GROM | Bekijk product |
| ARA702019 | ARA702019 | ARRMA M2.5x12mm 5.5mm Hex Head (10) | Bekijk product |
| ARA340202 | ARA340202 | ARRMA Steering Set | Bekijk product |
| ARA311231 | ARA311231 | ARRMA Metal Axle & Wheel Hex Set B (4): GROM | Bekijk product |
| ARA330839 | ARA330839 | ARRMA Front Suspension Arm Set B: GROM | Bekijk product |
| ARA320818 | ARA320818 | ARRMA Desert Truck Body Parts Set: GROM | Bekijk product |
| ARA320750 | ARA320750 | ARRMA Hingepin 2.5x37mm (4) | Bekijk product |
| ARA702011 | ARA702011 | ARRMA Cap Head Screw M2.5x12mm (10) | Bekijk product |
| ARA340217 | ARA340217 | ARRMA Aluminum Adjustable Steering Links Set B (2): MOJAVE GROM | Bekijk product |
| ARA-2151 | ARA-2151 | ARRMA Wheel Hex Pin Set 2x10mm (10) | Bekijk product |
| ARA702019 | ARA702019 | ARRMA M2.5x12mm 5.5mm Hex Head (10) | Bekijk product |
| ARA330805 | ARA330805 | ARRMA Ball 5.8x7x2.5mm (10) | Bekijk product |
| ARA610053 | ARA610053 | ARRMA Ball Bearing 7x11x3mm (2RS) (4) | Bekijk product |
| ARA330841 | ARA330841 | ARRMA Hub Set B (Front/Rear): GROM | Bekijk product |
| ARAC9750 | ARAC9750 | ARRMA Serrated Flange Wheel Nut 4mm (4) | Bekijk product |
| ARA702017 | ARA702017 | ARRMA Flat Head Screw M2.5x12mm (10) | Bekijk product |
| ARA610053 | ARA610053 | ARRMA Ball Bearing 7x11x3mm (2RS) (4) | Bekijk product |
| ARA702019 | ARA702019 | ARRMA M2.5x12mm 5.5mm Hex Head (10) | Bekijk product |
| ARA-1254 | ARA-1254 | ARRMA M2.5x8mm Button Head Screw With M3 Head (10) | Bekijk product |
| ARA311231 | ARA311231 | ARRMA Metal Axle & Wheel Hex Set B (4): GROM | Bekijk product |
| ARA-1254 | ARA-1254 | ARRMA M2.5x8mm Button Head Screw With M3 Head (10) | Bekijk product |
| ARA702016 | ARA702016 | ARRMA Flat Head Screw M2.5x8mm (10) | Bekijk product |
| ARA320822 | ARA320822 | ARRMA Desert Truck Interior Frame: GROM | Bekijk product |
