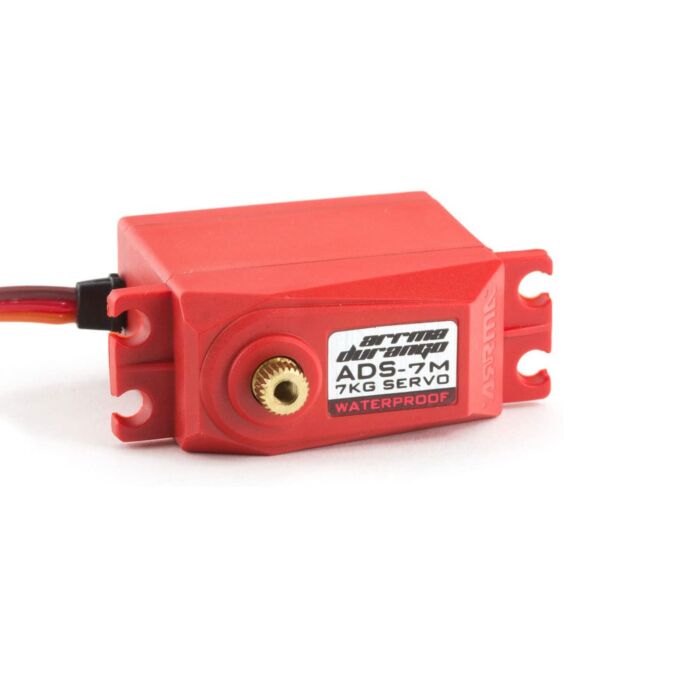

The ADS-7M V2 Servo is designed to give you fast and precise steering. Resilient to the elements and built from hard-wearing materials. Specification:.Case – Red, Water-proof & dust-proof.Bearing – Dual ball bearing.Connector – ‘Futaba style’ 3 pin connector.Gears – Metal.Spline – 25 Tooth.Dimensions: 40mm x 38mm x 20mm (Excluding mounting tabs), Industry Standard size.Wire length: 300mm.Torque – ADS-7M: 7kg/cm (97oz/inch) at 7.2V.Speed – 0.14 sec/0.12 sec 6V/7.2V.Signal – Analogue
